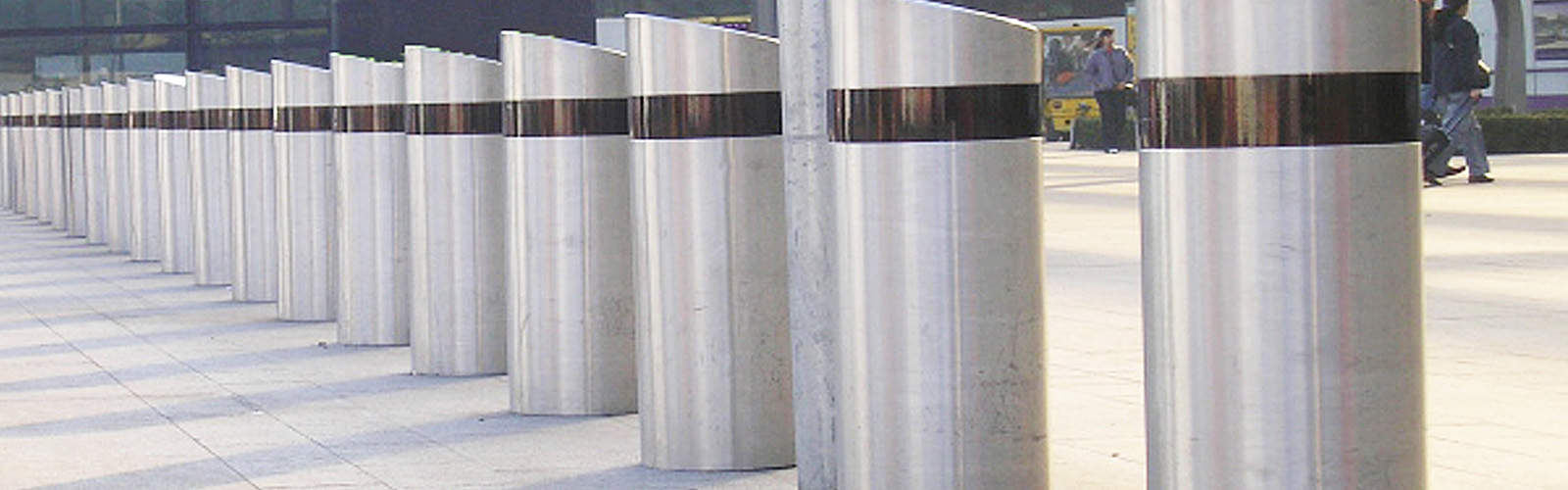

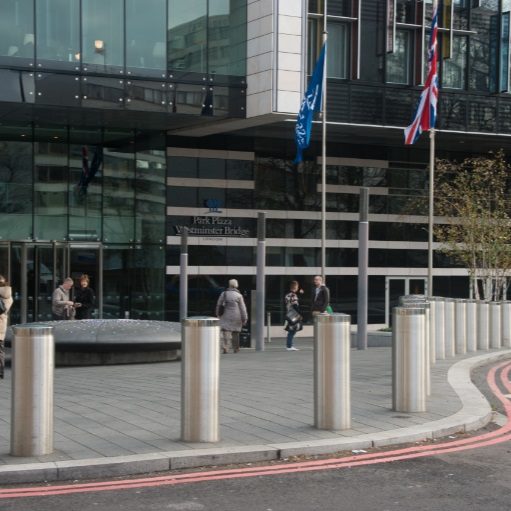

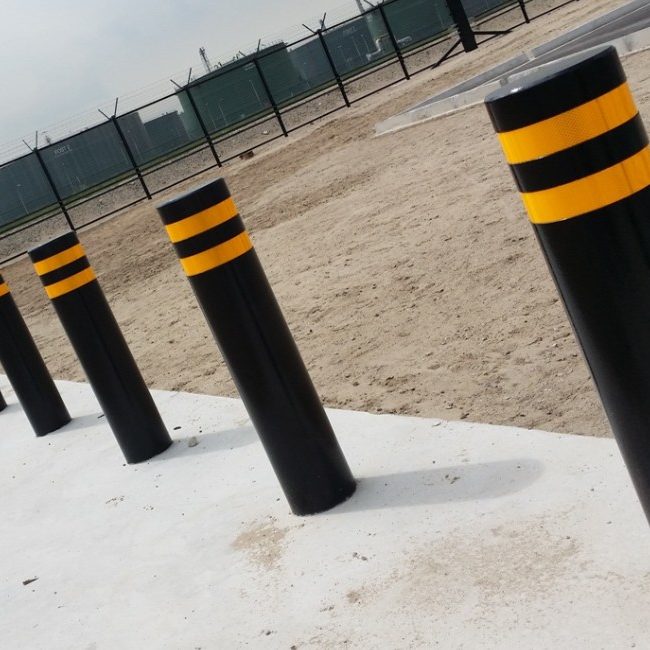

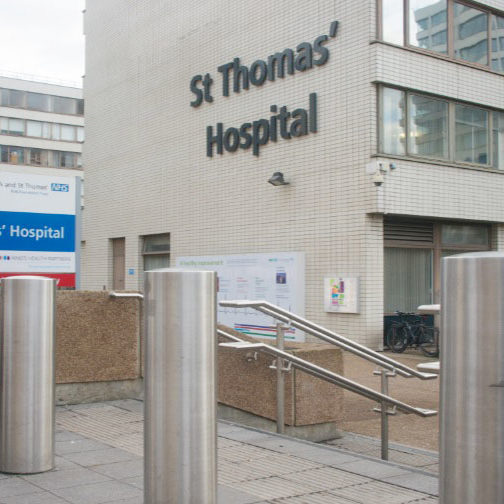

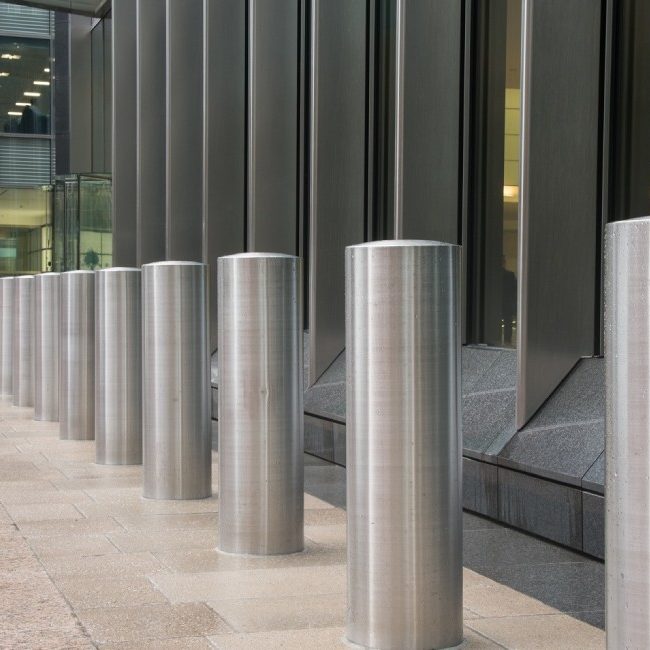

CRASH RATED BOLLARDS

We offer a wide range of crash tested Fixed, Manual and Automatic Bollards that have been designed for hostile mitigation and impact tested and certified to PAS68 or IWA14 to provide extra high security.

Extremely strong and robust with a vandal resistant construction, the designs offer an alternative to the road blocker when the environment requires a more architecturally sensitive security system.

Available in a variety of operating settings, shapes, sizes and colours to suit a range of high security applications. We are also able to offer our customers a bespoke engineering solution.

Get a Quote

CRASH RATED BOLLARD OPTIONS

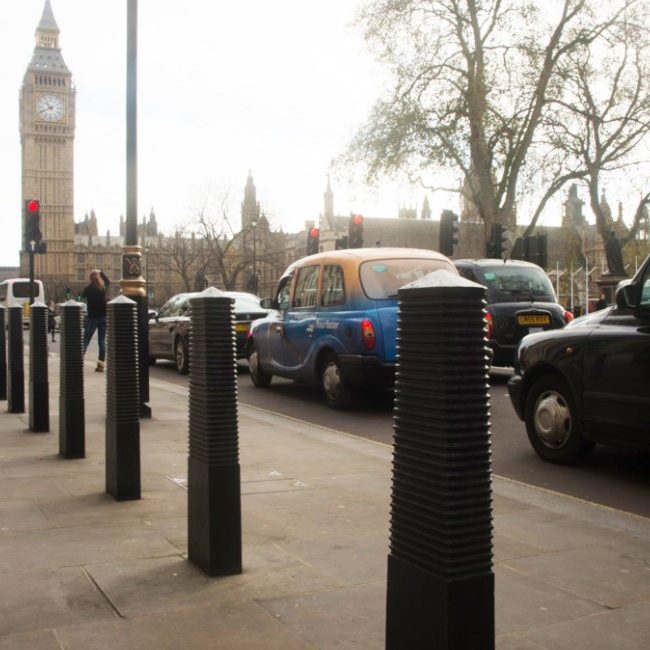

  • PAS68/IWA14 Fixed bollards
  • PAS68/IWA14 Manually retractable/removable bollards
  • PAS68/IWA14 Automatic bollards
  • PAS68/IWA14 Shallow mounted automatic bollards
  • PAS68/IWA14 Surface mounted automatic bollards

FEATURES & BENEFITS

  • Ideal to prevent high velocity, vehicular attacks while keeping a perimeter pedestrian permeable.
  • Hot-dip galvanised as standard to provide corrosion protection
  • Manually bollards offer an impact tested solution to secure site entrances which only require occasional access without the need for a power supply.
  • Variety of finishes: Galvanised, stainless steel, RAL coated or aesthetic sleeve to fit seamlessly into any urban or traditional street scene.
  • All bollards are certified to PAS68 or IWA14
  • Zero penetration when impacted
  • 1 year manufacturers warranty *T&C’s apply

TECHNICAL INFORMATION

Diameter of bollards range from: 90mm – 273mm
Wall Thickness range from: 3mm – 10mm
Height Above Ground: 700mm – 1200mm
Foundation Depth: 112mm – 2220mm
Shape at the top: flat, sloping, dome, semi-dome

Security Ratings:
PAS68 Fixed Bollards ratings range from: 1.5Kg at 48kph up to 30kg at 80kph
PAS68 Manual Bollards ratings range from: 2.5Kg at 48kph up to 7.5kg at 80kph
PAS68 Automatic Bollards ratings range from: 1.5Kg at 32kph up to 30kg at 80kph
PAS68 Shallow Mounted Bollards ratings range from: 7.5Kg at 48kph up to 7.5kg at 80kph

APPLICATIONS

Town Centers

Town Centres

Bus lane segregation

Pedestrian Areas

Airports

Airports

Data Centres

Data Centres

Financial Centres

Financial Centres

Heritage Sites

Government Buildings

Embassies

Embassies

Palace

Palaces
